OEM Manufacturer Simirt Casseffe Oil Seal Casseffe 2 Casseffe 3 Casseffe HS oil seal

Description

IKSONIC is expert and OEM Manufacturer Simirt Casseffe Oil Seal .

Manufacturer Simirt Casseffe Oil Seal

OEM Manufacturer Simirt Casseffe Oil Seal eCatalog Resource Center Passenger Cars Truck Engine, Performance, Marine, Power Sport, Agricultural machine.

Germany simirt CFW Casseffe oil seal with high performance and high quality is suitable for use in environments demanding places, such as axle heavy trucks, gasoline, diesel engine crankshaft, mining equipment, gearboxes, compressors, etc., and has been American NASCAR (American NASCAR) recognition.

Germany simirt CFW Casseffe1, Casseffe2, Casseffe 3, Casseffe HS, MSS7 type
Combination of modular seal type 7
Features:
Seal the outer edge: rubber (smooth)
Lip lip with spring
With dust lip
Lip lip structure optimization
Engage in high performance contaminants
Solve the problem of solid assembly
Between the sealing lip and dust side is filled with special lubricants Kluber GHY 133N

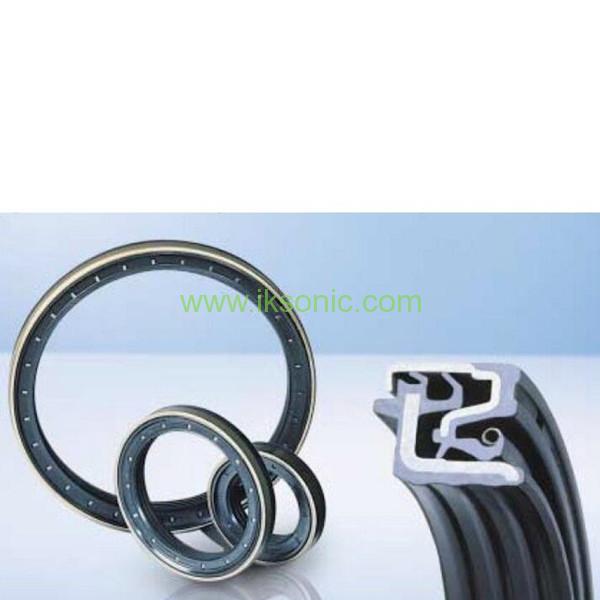

SIMRIT seal cartridge combination high-speed type (Cassette HS)
Nitrile rubber seal materials are generally divided into: black (75 NBR 106200); Viton: reddish brown (75 FKM 595); acrylic rubber: Black (68 ACM), a metal skeleton (DIN 1624-EN10139), spring steel (DIN 17223 ).

The advantage of this product is that the inner diameter of the contact surface of the rubber / metal integration designed; well suited for high speed; the metal surface to ensure higher heat transmission performance and better thermal performance; and can be a fast and reliable replacement parts; shaft without surface treatment; rubber surface to ensure that the internal diameter of the sealing position.
SIMRIT combination seal cartridge type high speed operating conditions specified in the material, when taking into account a variety of extreme conditions do not occur simultaneously, such as: Seal 75 FKM 595, a temperature less than 120 degrees Celsius, the speed of 12 meters per hour, pressure 0.03 Mpa /0.6 bar; slide ring 75 NBR 106200 is less than 80 degrees Celsius; slide ring 68 ACM, less than 100 degrees Celsius.
This cartridge is used in combination seal HS pinion type when applied to industrial vehicles and commercial vehicles: such as agricultural machinery (tractor type), commercial wheels (small trucks, small special vehicles), a pinion gear, differential and drive technology.
freudenberg NOK CFW SIMIRT 4 well-known brands, high-end sealing products, construction machinery, agricultural machinery, universal type, NOK QLFY type,
The outer diameter of the shaft diameter d outside diameter D1 D2 width b1 b2 b3 Part Number
40 70 78 11 20 3 BQ2811E1
45 70 78 10 19 2.8 BQ3119E1
45 78 86 11 20 3 BQ3068E1
50 79 87 10.2 19 2.8 BQ3048E1
50 90 98 12 21.8 3 BQ2199E1
55 82 90 10 19 2.8 BQ3160E1
55 88 96 11 20 3 BQ3138E1
55 90 98 14 26 3 BQ3118E1
60 90 98 11 20 3 AQ3241E1
60 100 106 14 26 3 BQ3139E1
65 95 102.6 10 19 2.8 BQ3137E1

Simrit Showcases CASCO Cassette Shaft Seals
